Mechanical mounting of the LabKey Next reader: wall mounting and RS-485 cable routing.

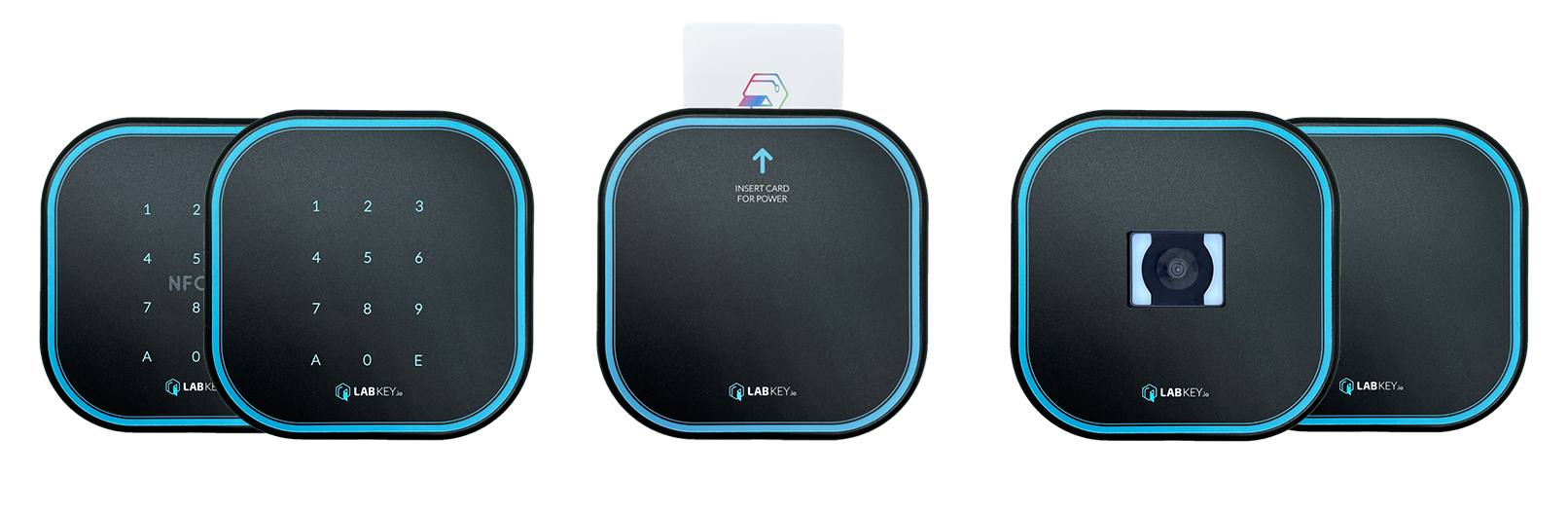

LabKey Next Reader
Connecting Control Devices to the Control Unit

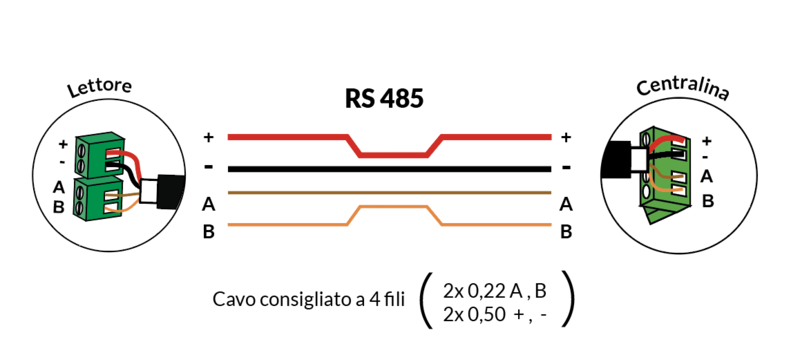

The connection between the control unit and the Next range control device is made via RS-485 bus: see the dedicated page for the recommended cable, maximum distance and polarity.

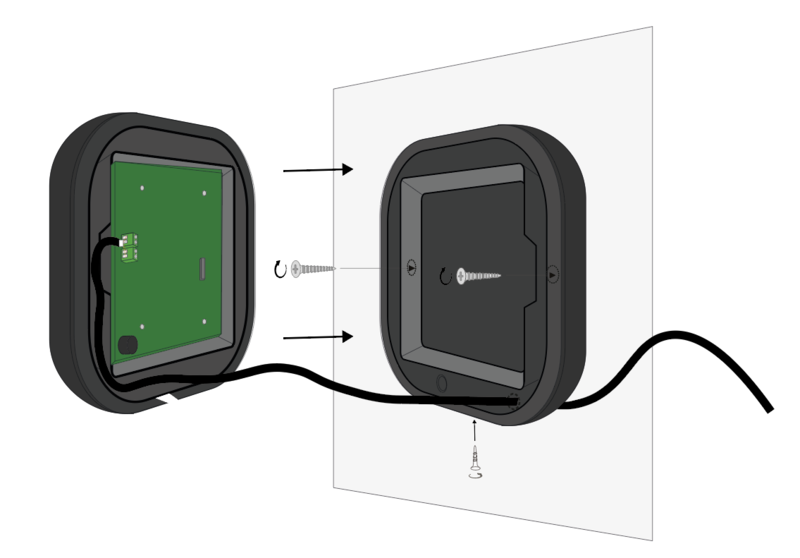

Wall Mounting
- Attach the control device to the wall using the two supplied screws. Inside the casing, you will find guides that help with correct positioning for mounting.
- Drill a third hole at the bottom to allow the RS-485 cable to pass through.
- Connect the corresponding wires (+, -, A and B) to the respective terminals on the control device and close the casing by screwing in the included screw.
