Glass Reader

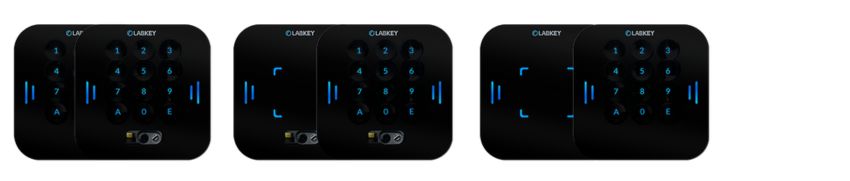

LabKey Glass Reader
Attention: the LabKey Credit Card reader model, from a hardware perspective, follows the characteristics described here for the LabKey Glass model.
Connecting Control Devices to the Control Unit

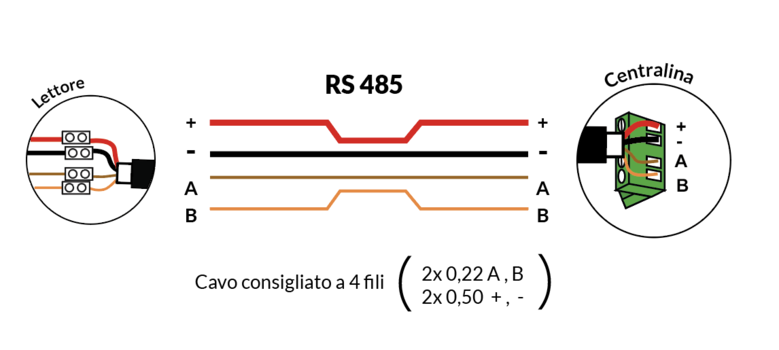

The connection between the control unit and the Glass range control device is made via RS-485 bus: see the dedicated page for the recommended cable, maximum distance and polarity.

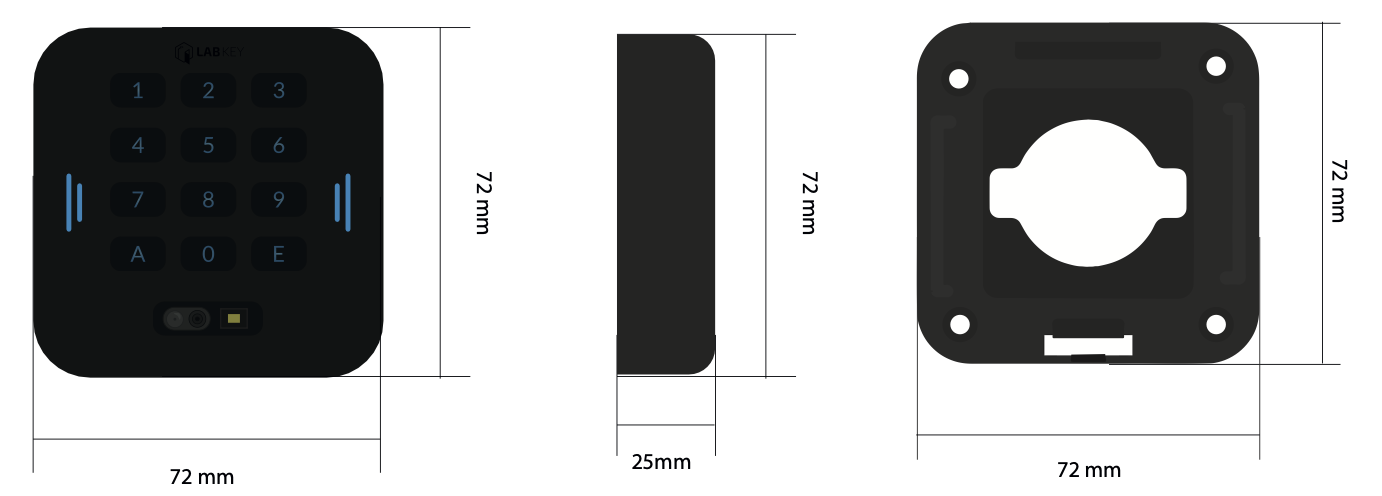

GLASS Reader Measurements
Download the PDF with the full measurements
Wall Mounting

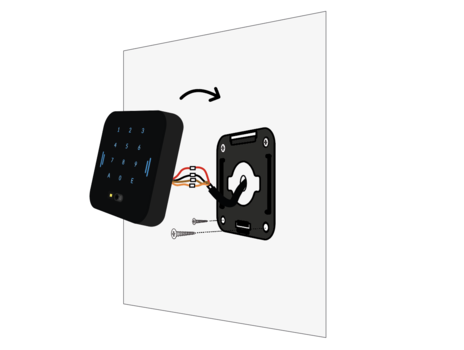

- Attach the bracket to the wall using the 4 supplied screws.
- Pass the RS-485 cable through the wall and through the hole in the bracket.
- Connect the corresponding wires (+, -, A and B) to the respective terminals on the control device.

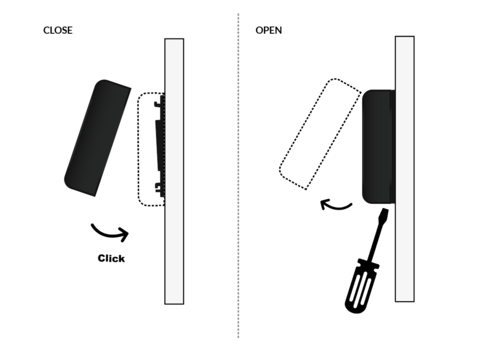

- Attach the control device to the wall bracket, ensuring it “clicks” into place.
To detach the control device from the wall bracket, use a screwdriver.

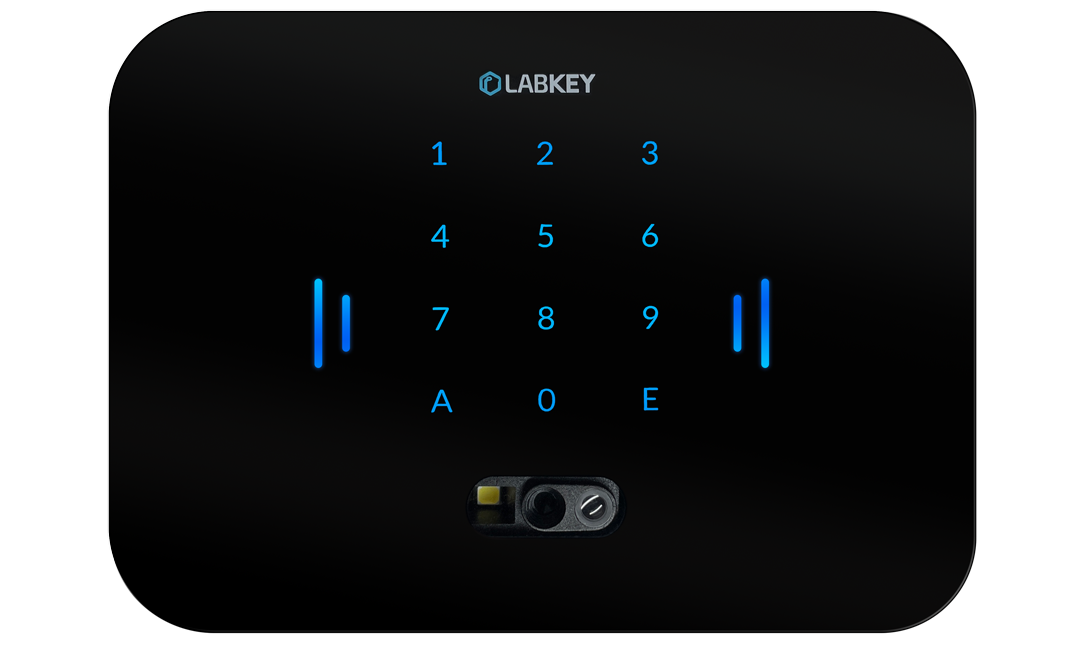

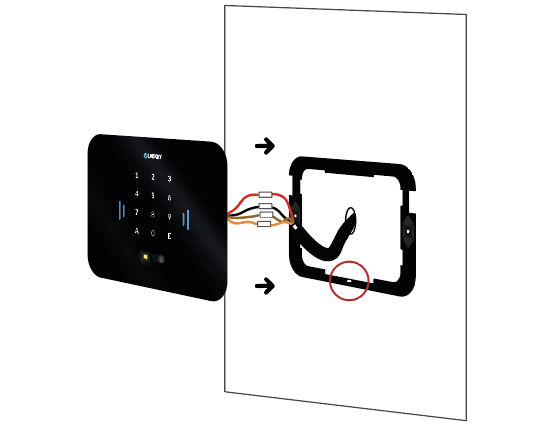

Wall Mounting LabKey Glass 503
- Attach the wall bracket using the mounting screws. Note: make sure the bracket has the hole for the screw facing downward.
- Pass the RS-485 cable through the wall and through the bracket hole.
- Connect the corresponding wires (+, -, A and B) to the respective terminals on the control device.

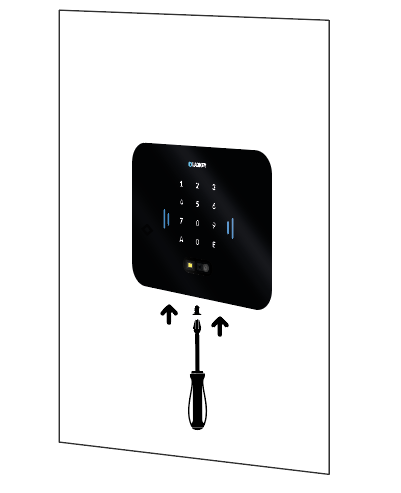

- Secure the control device to the wall bracket by screwing it in place. Note: Make sure the control device is firmly attached to the wall bracket.
Download the PDF with the full measurements
DUAL-MODE QR CODE
Our QR codes have been tested in all lighting conditions to ensure maximum functionality. Moreover, thanks to its dual mode, our QR code reader meets all needs:
- Day Mode: the reader remains constantly active and therefore always in focus
- Night Mode (default): the reader activates and focuses thanks to the presence sensor, without emitting any light.

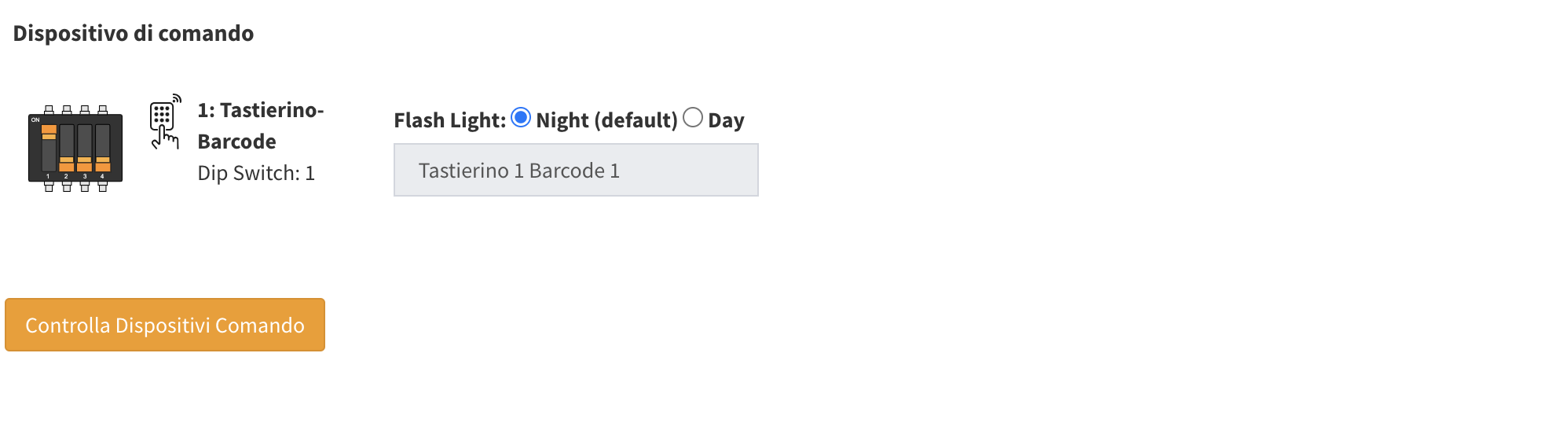

To change the QR Code mode, go to the My LabKey > LabKey section and click on the green pencil corresponding to the control unit where your QR code reader is connected.
WARNING: changing this setting will restart the device.
